Main Functions of a Digital Computer

A digital computer is an electronic device that accepts data, processes it according to instructions, and produces meaningful output.

The main functions of a digital computer are:

• Input — Accepts raw data and instructions from the user through input devices (keyboard, mouse, etc.)

• Storage — Stores data and instructions temporarily (primary memory) or permanently (secondary memory) for later use

• Processing — Performs arithmetic and logical operations on data using the Central Processing Unit (CPU)

• Output — Delivers the processed result to the user through output devices (monitor, printer, etc.)

• Control — The Control Unit (CU) directs and coordinates all operations happening inside the computer

In short, a digital computer takes input, stores it, processes it, and gives output — all under the supervision of the control unit.

---

Block Diagram of a Digital Computer

The block diagram of a digital computer shows five key components and how data flows between them.

Components and Explanation:

• Input Unit Accepts data and instructions from the user. Devices: keyboard, mouse, scanner. Converts input into binary form the computer understands.

• Memory Unit (Storage)

  • Primary Memory (RAM/ROM): Stores data currently being processed — fast but temporary
  • Secondary Memory: Stores data permanently — hard disk, USB drives

• Central Processing Unit (CPU) The brain of the computer, divided into two parts:

  • ALU (Arithmetic Logic Unit): Performs all calculations (+, −, ×, ÷) and logical comparisons (AND, OR, NOT)
  • CU (Control Unit): Controls and coordinates all units — it fetches, decodes, and executes instructions

• Output Unit Delivers the processed result to the user. Devices: monitor, printer, speaker. Converts binary results back into human-readable form.

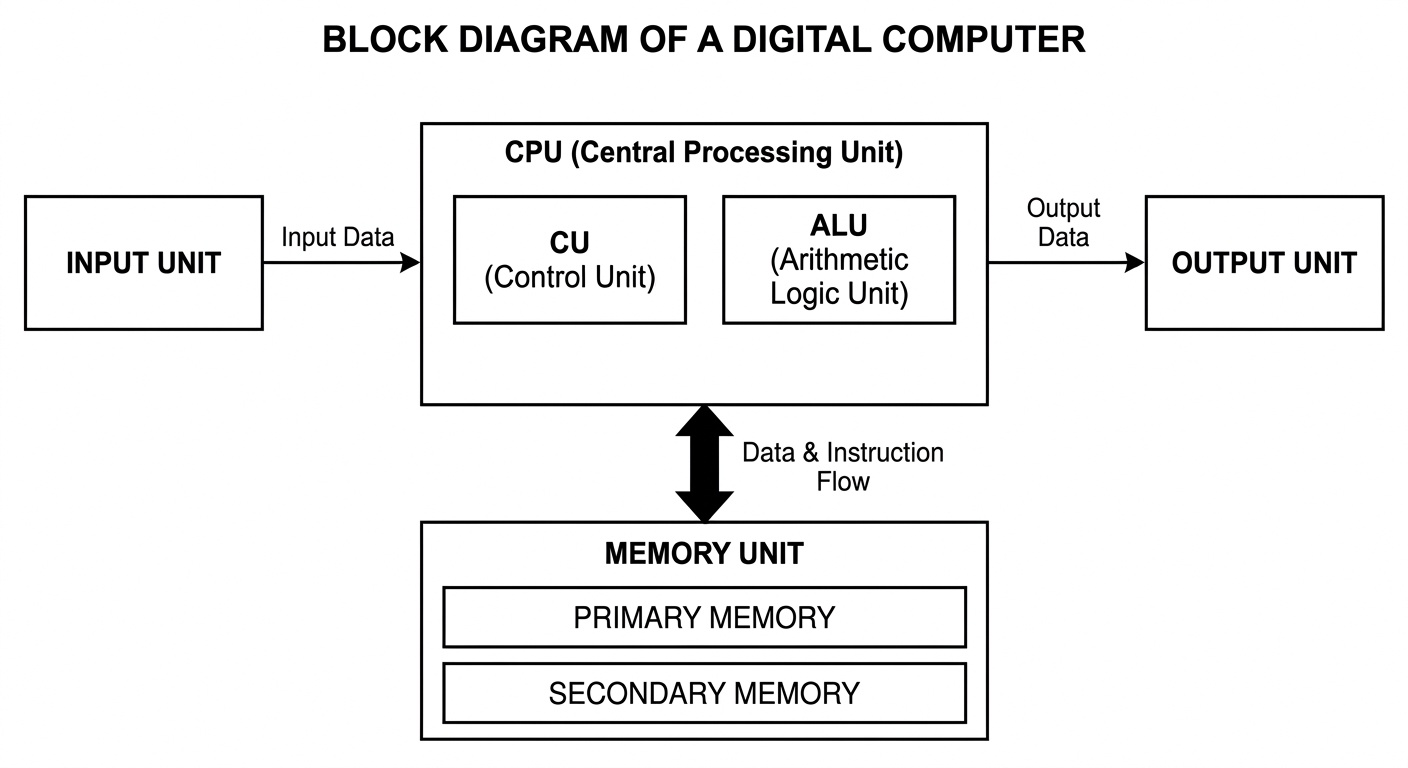

Block Diagram :

Data Flow:

• i. User gives data through the Input Unit
• ii. Data is stored in Memory
• iii. CU fetches instructions from memory and directs ALU to process data
• iv. ALU performs the required operation
• v. Result is stored back in memory and sent to the Output Unit

All five components work together in a coordinated way to complete any computing task efficiently.
